Setup XV Gateways with AlarmVision®

Note: In order to connect an XV Gateway to an XR Series, the panel requires Version 221 Firmware or higher.

  1. Log into Dealer Admin.

  2. Find the customer and select the relevant system. Click Edit.

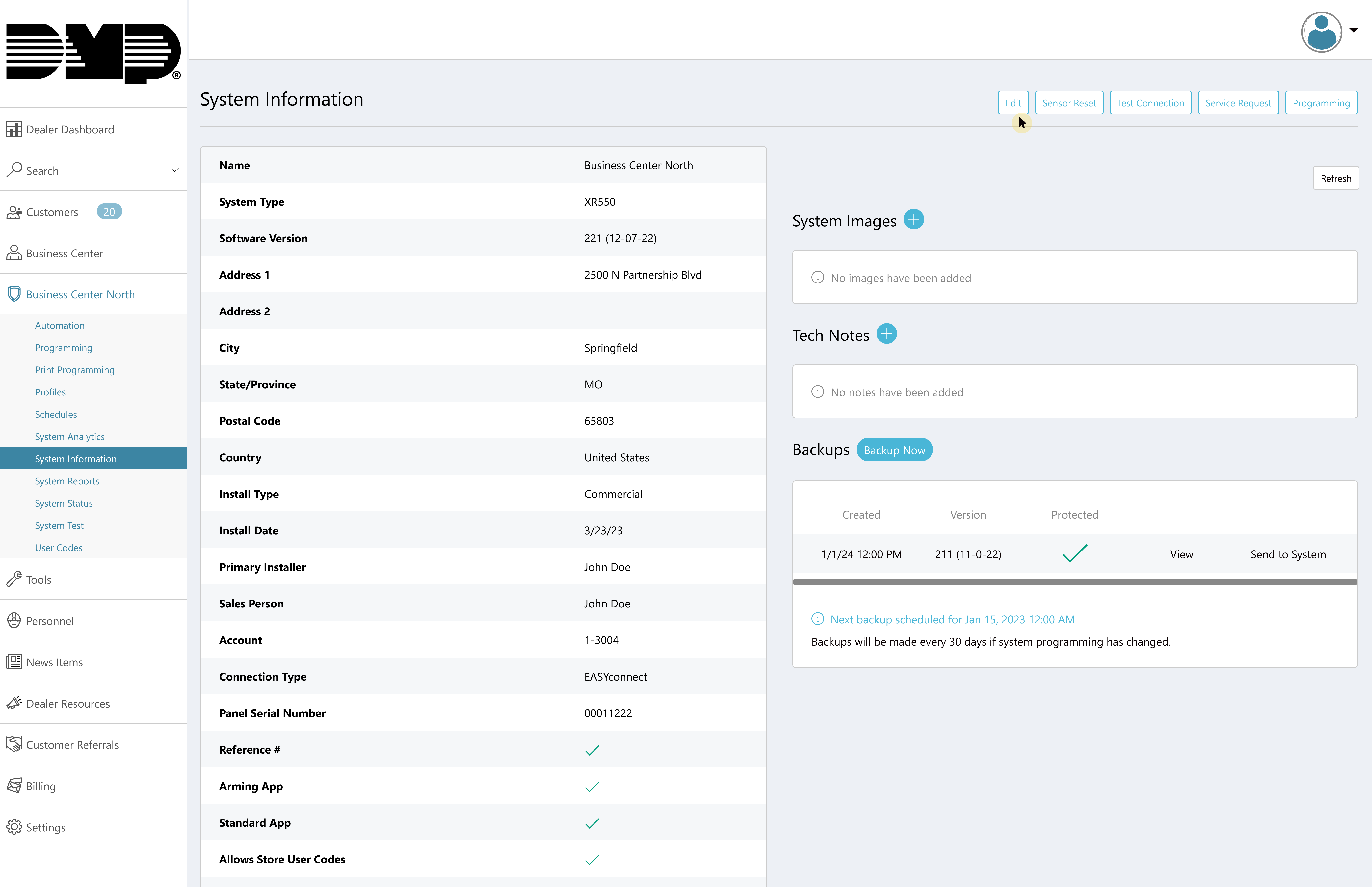

1 edit system.png

Edit a Customer’s System

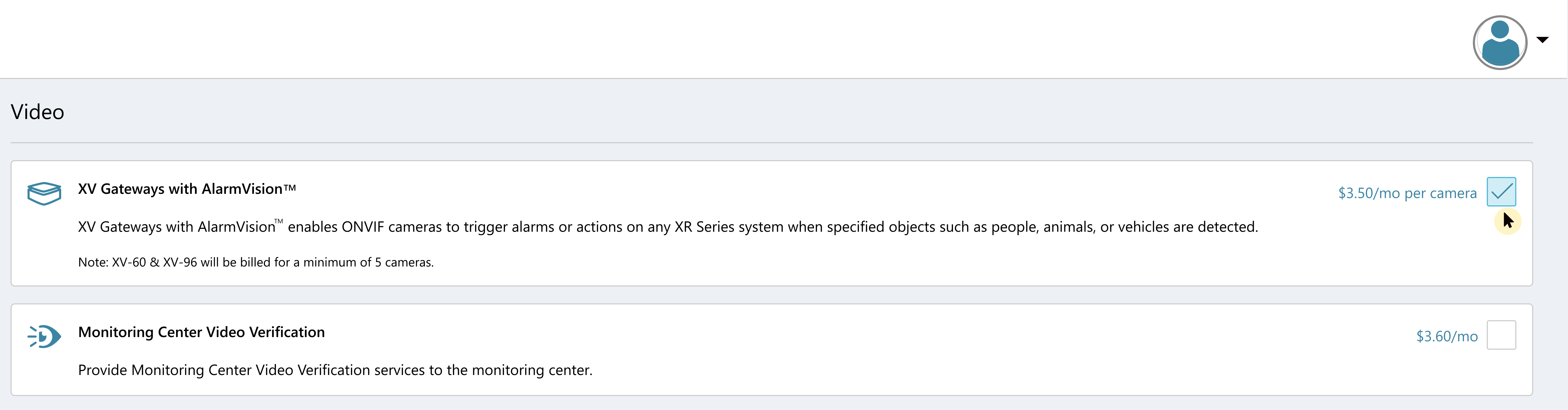

  1. In Video, click the XV Gateways with AlarmVision® checkbox, then click Save.

2 enable xv gateways.png

Enable XV Gateways with AlarmVision®

Add the XV Gateway

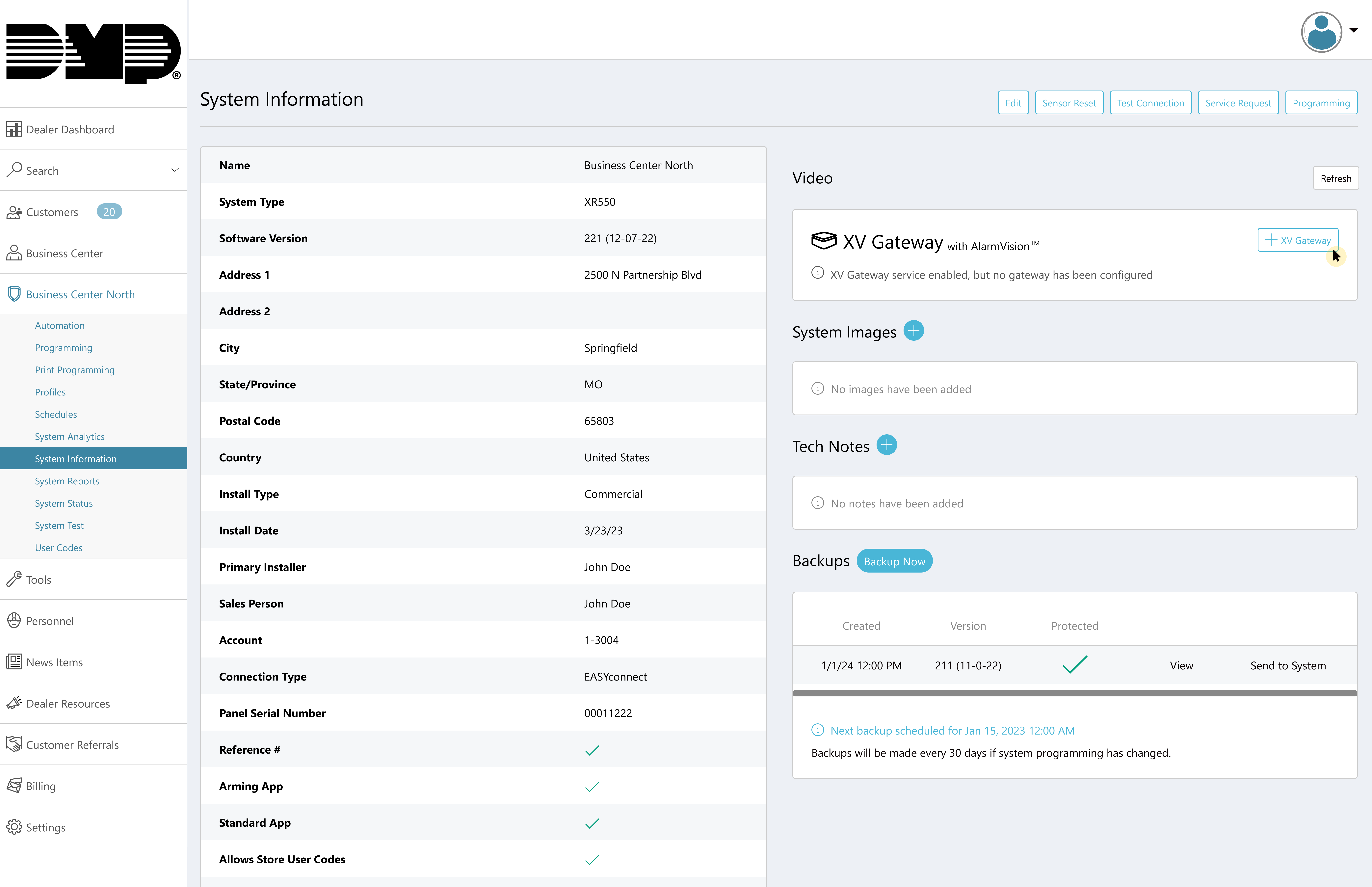

  1. In the XV Gateway with AlarmVision® section, click + XV Gateway to add an XV Gateway.

3 add xv gateway.png

Add an XV Gateway

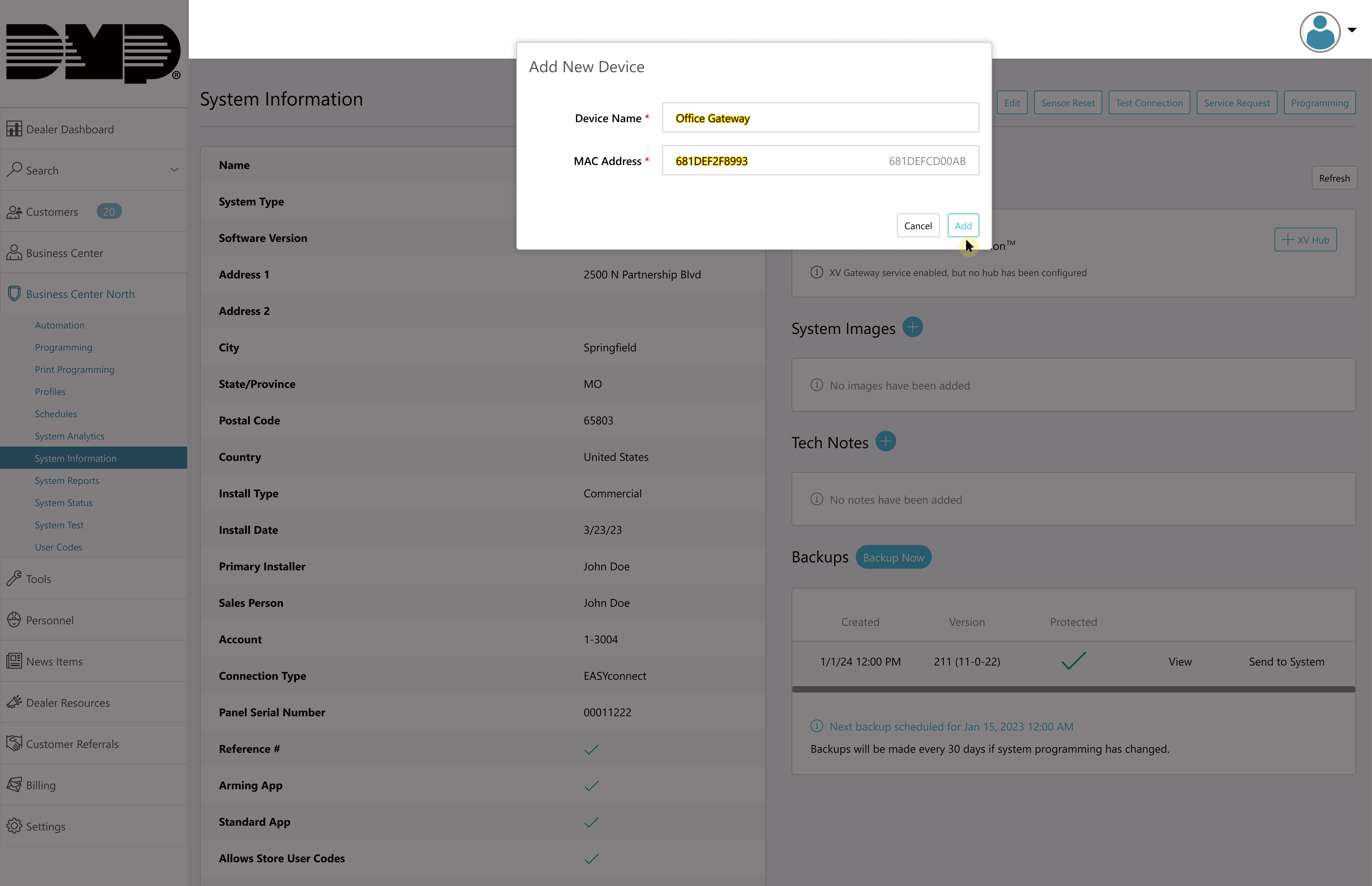

  1. Add a Device Name and the MAC Address you want the XV Gateway connected to. Click Add.

4 add office gateway device.png

Add XV Gateway Details

Dealer Admin automatically checks to see if the XV Gateway is a model XV-24, XV-60, or XV-96.

If the XV Gateway is a model XV-24, continue to the Add Cameras to the XV Gateway section below.

If the XV Gateway is a model XV-60 or XV-96 and the second NIC port has been connected, the following prompts display to configure a secondary NIC.

Configure Secondary NIC for Private Camera Network

There are two connection options to choose from when adding a secondary network interface to a private camera network.

The first connection option is using a DHCP Server. This option automatically assigns a dynamic IP address to the XV Gateway so it can change over time. If you can plug in a camera or device into your private network and immediately access other devices on the network, then you likely have a DHCP server.

The second connection option is using a Static IP Address. This refers to an IP address that is manually assigned to the XV Gateway and does not change automatically. If your private camera network consists of only cameras and you set up each camera with its own static IP address, then you likely do not have a DHCP server.

Before configuring a secondary network interface in Dealer Admin, connect a network cable to the second network switch. Allow 5 minutes for the XV Gateway to scan your camera network before proceeding.

Note: The panel can only be connected to the primary network connection through the network switch or subnet.

DHCP

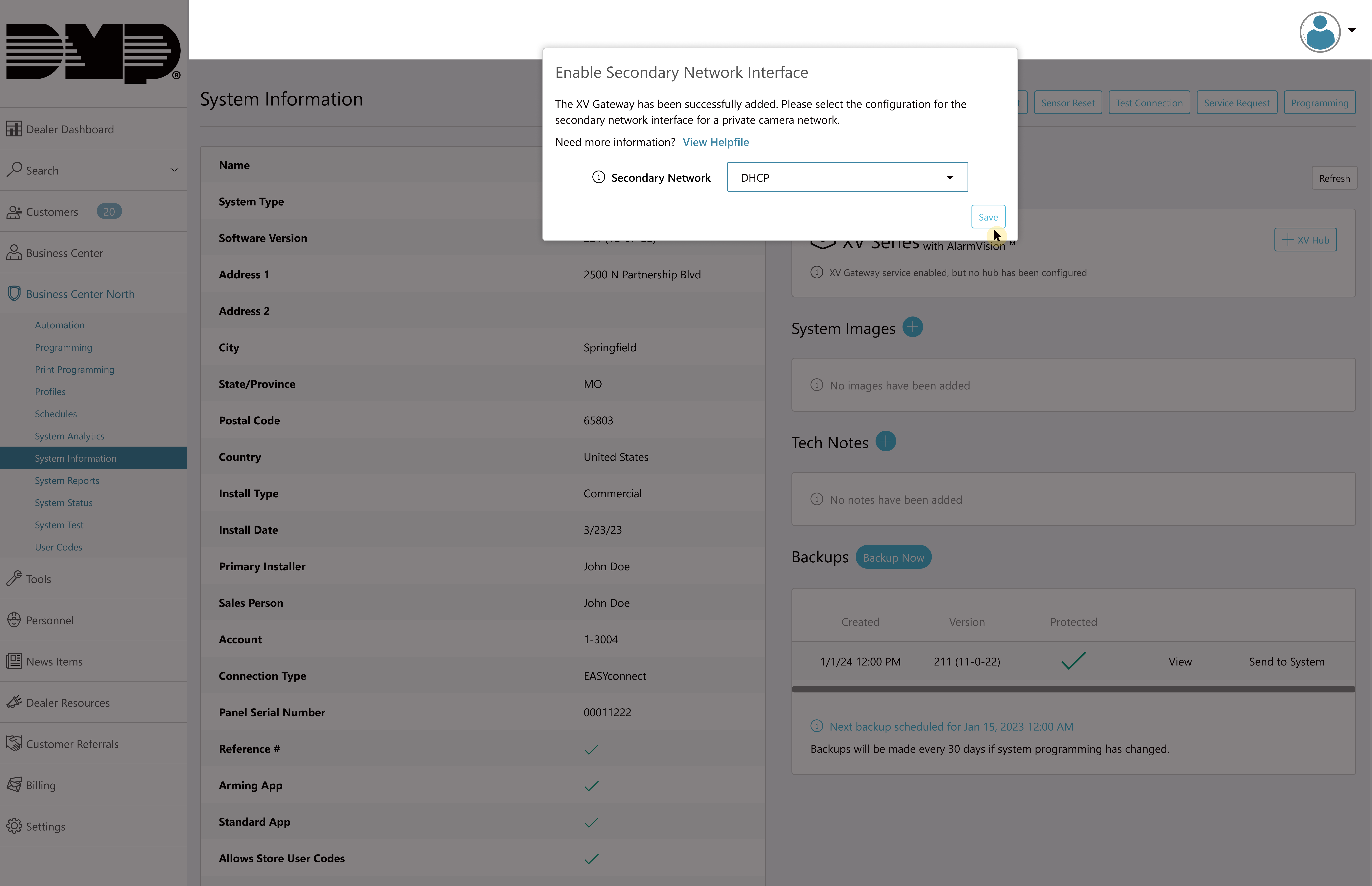

  1. DHCP is automatically selected in Dealer Admin. Click Save.

Note: Select DHCP to allow your private camera network’s DHCP server to assign the address for your XV Gateway’s secondary NIC.

5 enable second nic - dhcp.png

Save DHCP

Static IP

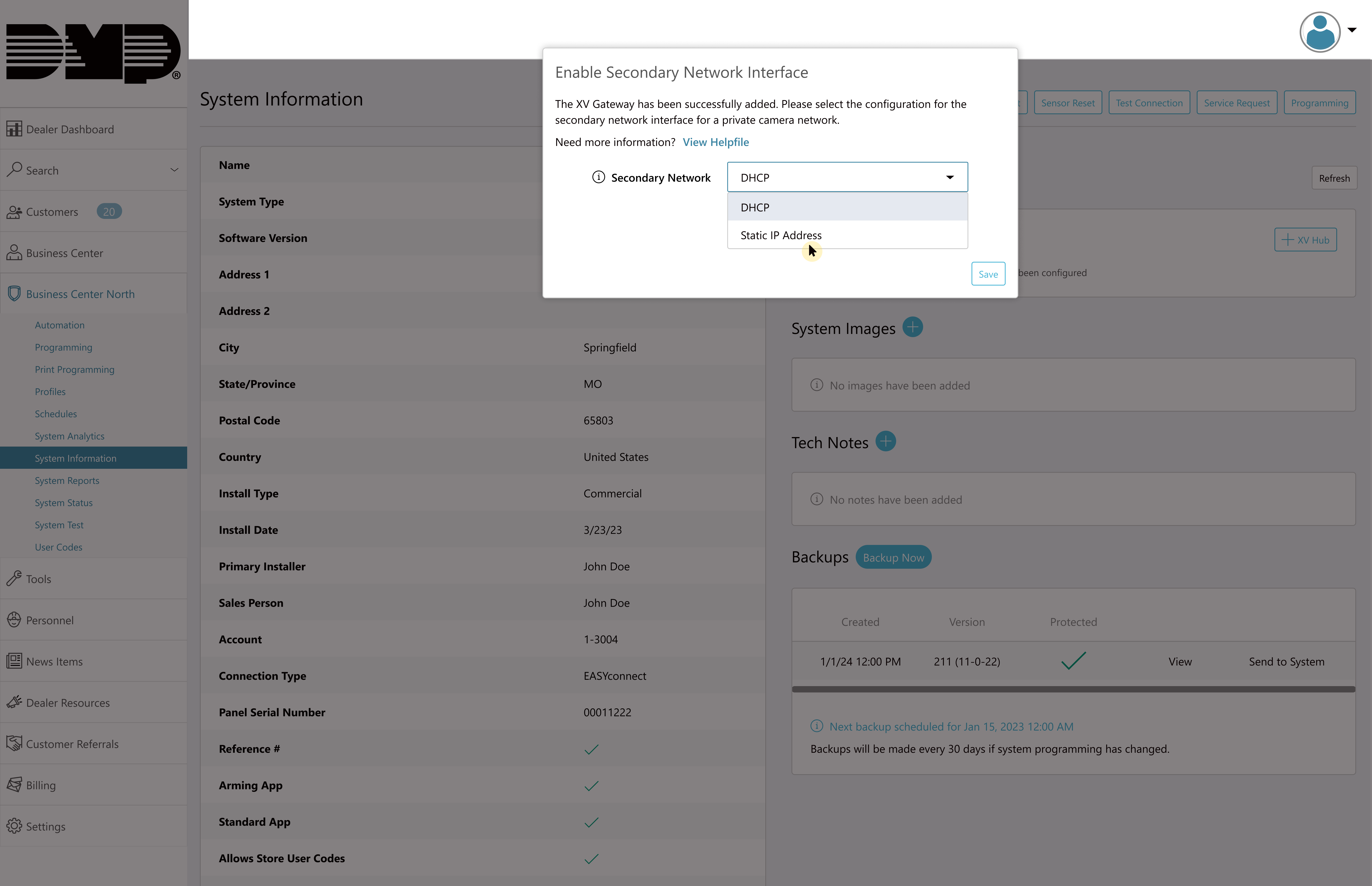

  1. Select Static IP Address from the drop-down menu.

Note: If your private network has a DHCP Server, ensure the Static IP Address is reserved.

6 enable second nic - static ip.png

Select Static IP Address

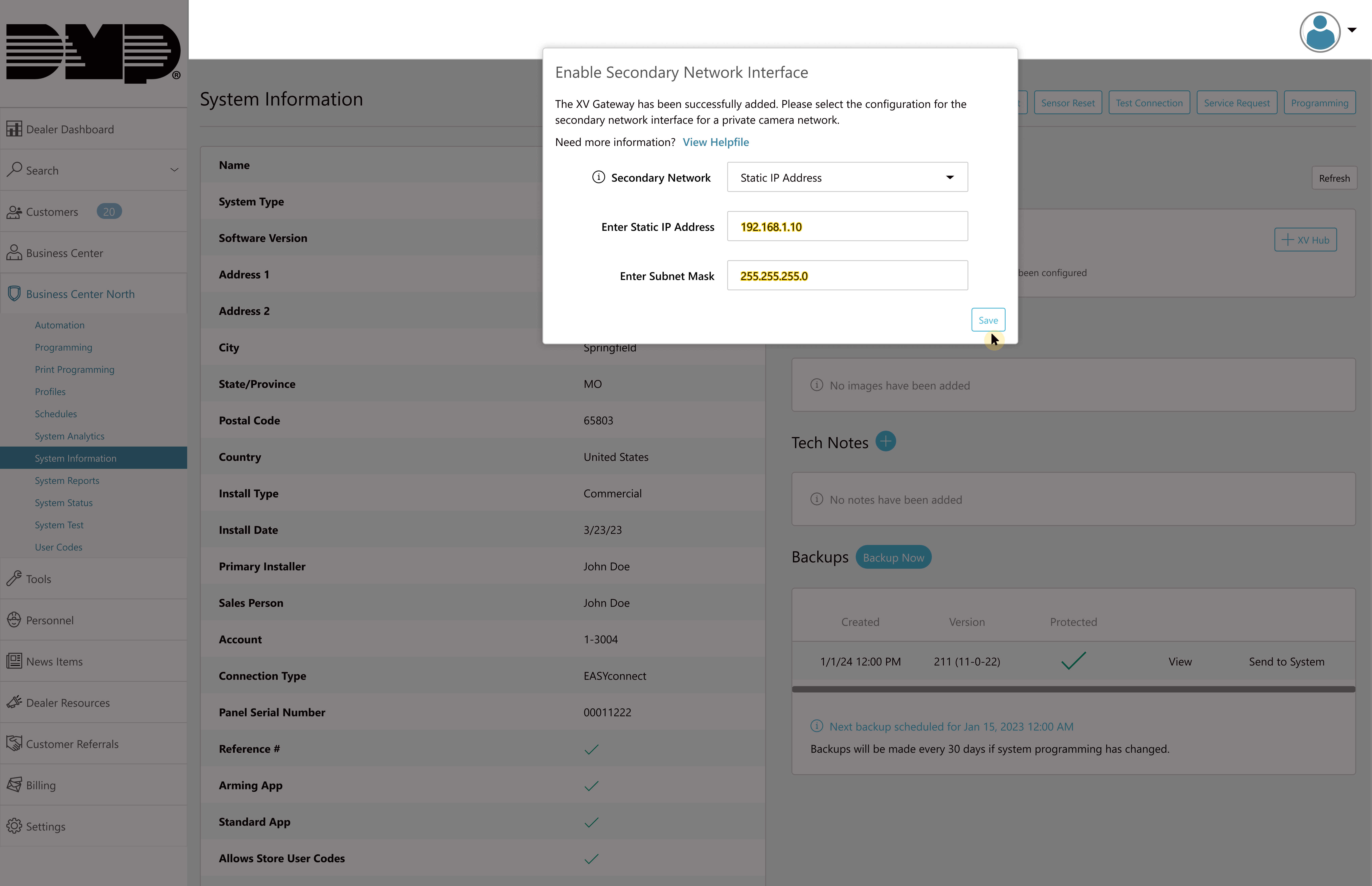

  1. Enter the Static IP Address and Subnet Mask information. Then, click Save.

Note: Ensure that the Static IP Address and Subnet Mask are the same network segment used for the cameras on your private camera network.

7 enable second nic - static ip information.png

Save Static IP Address

Configure a Secondary NIC After XV Gateway Has Been Added

  1. After setting up the XV Gateway, connect a network cable to the secondary network port on the back of the XV Gateway. Allow up to 5 minutes for the XV Gateway to scan your camera network. Refresh the Dealer Admin browser before proceeding.

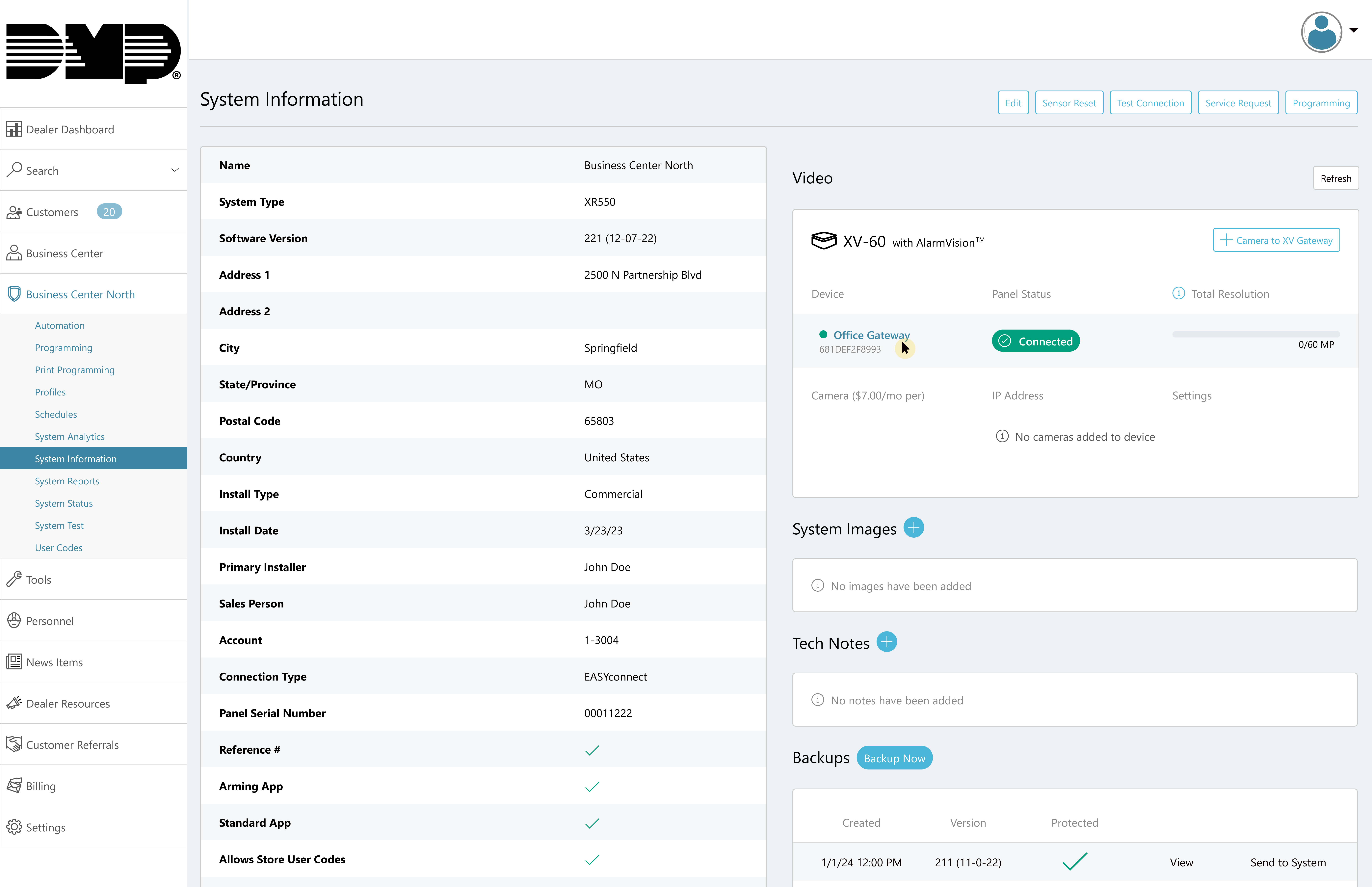

  2. Select the XV Gateway from the XV Series with AlarmVision® section.

8 select gateway.png

Select the XV Gateway

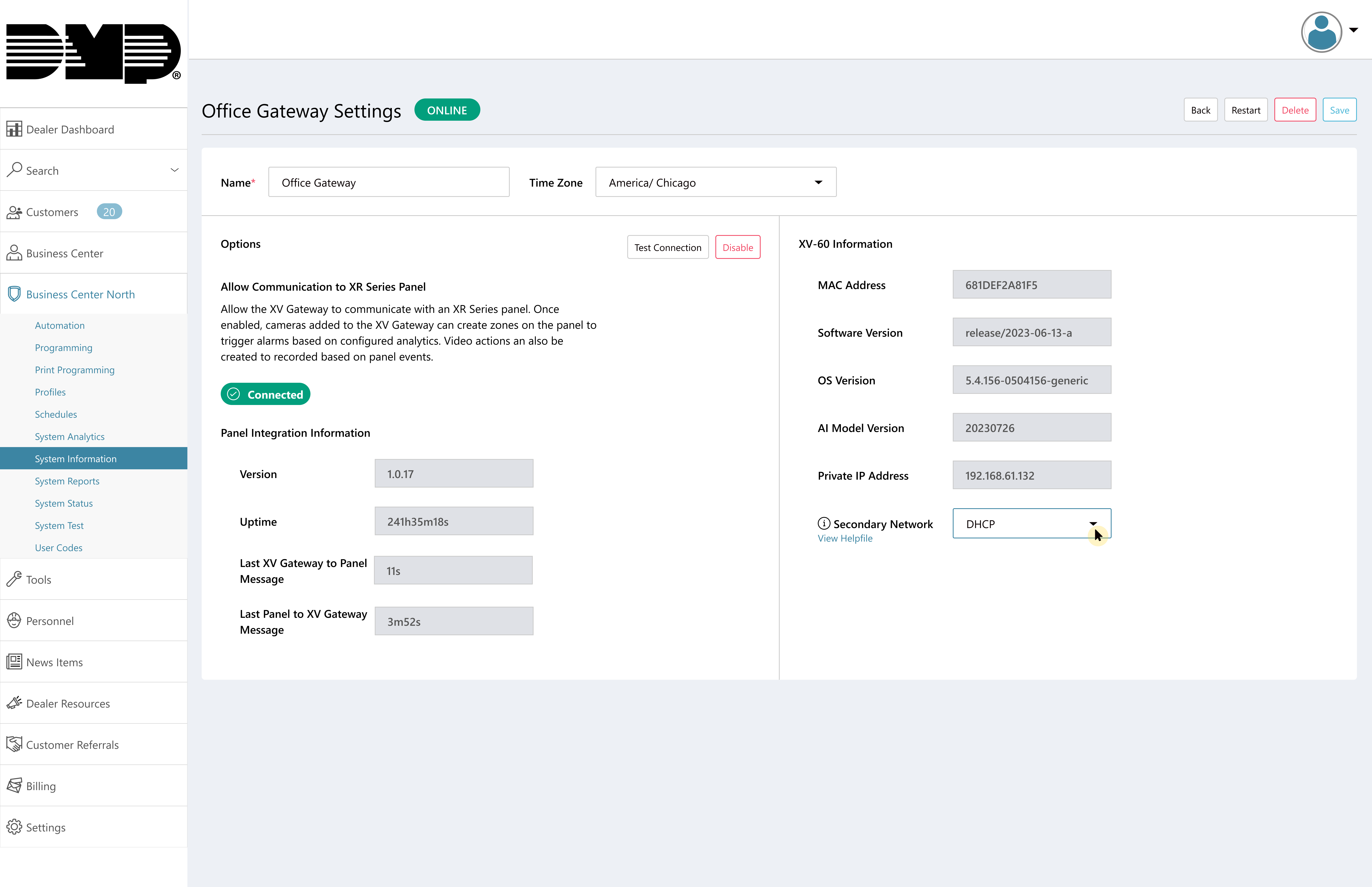

  1. In Secondary Network, use the drop-down menu to select the network connection type.

Page_ Hub Info.png

Select Secondary Network Connection

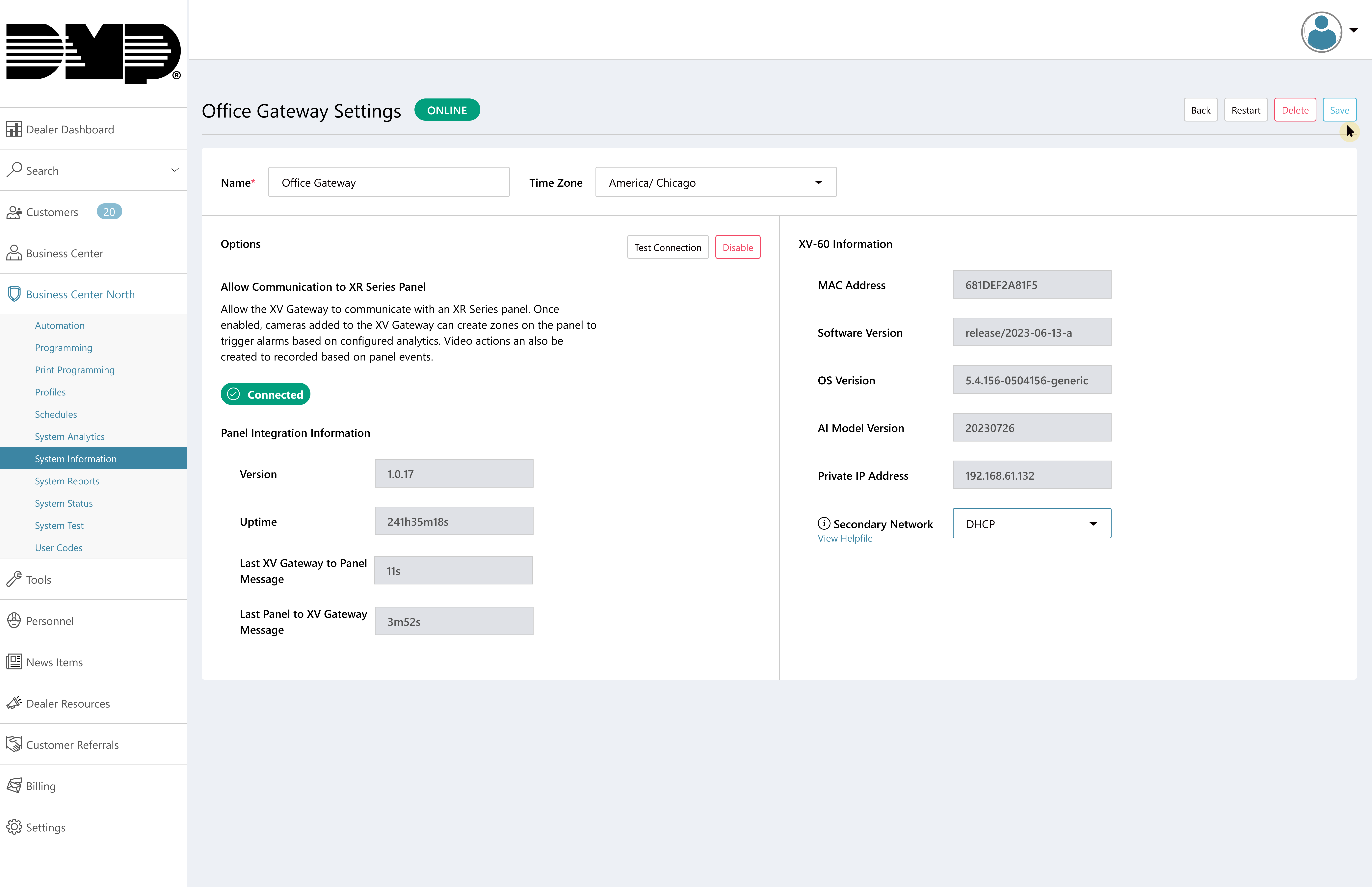

  1. Click Save to apply any changes to the XV Gateway.

Page_ Hub Info (1).png

Save XV Gateway Edits

Additional Information

XV Gateway Settings

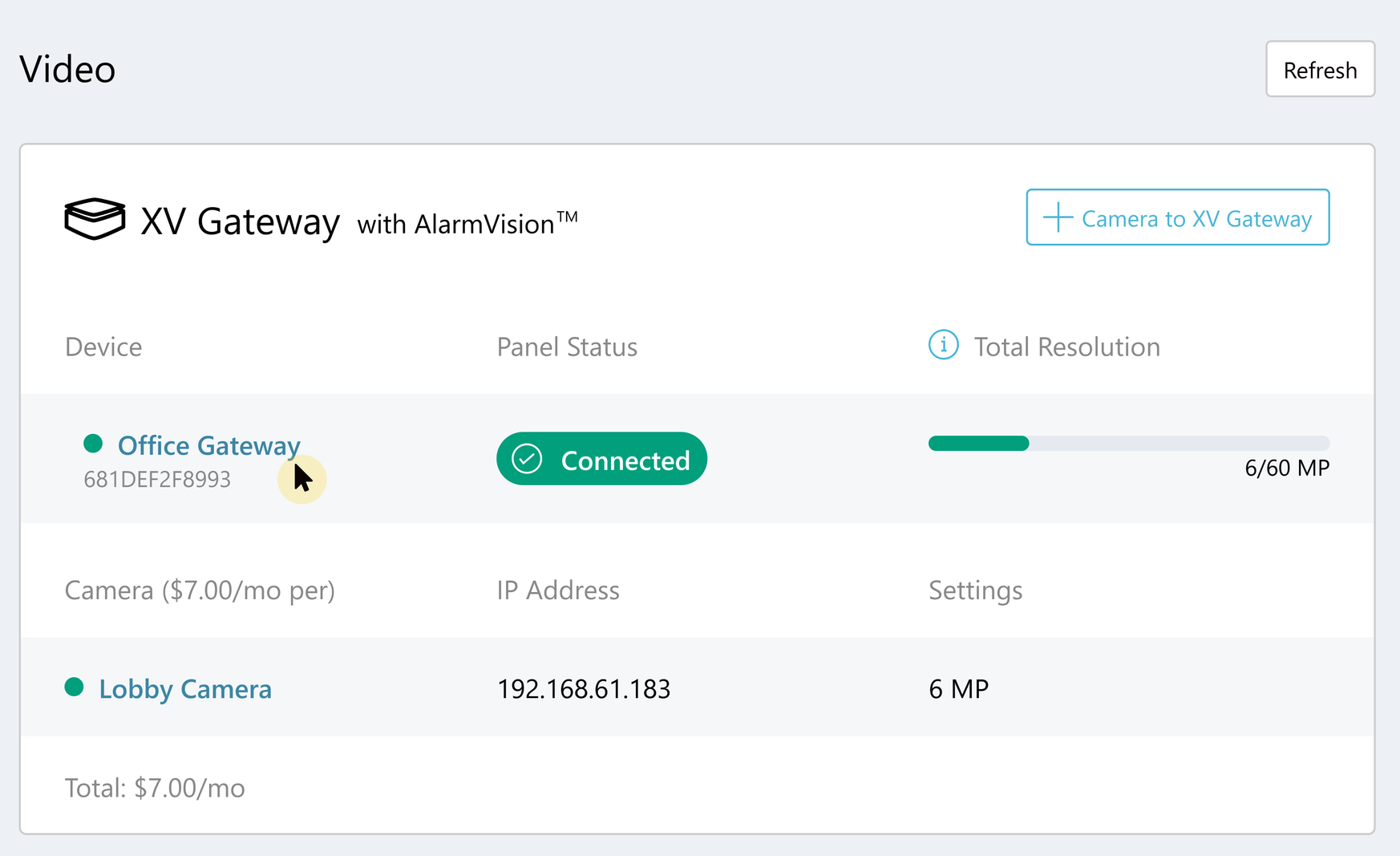

Before proceeding, navigate to XV Gateway Settings. On the System Information page, select the gateway you would like to edit.

23 XV Gateway Settings.png

Select the XV Gateway

Edit XV Gateway Name

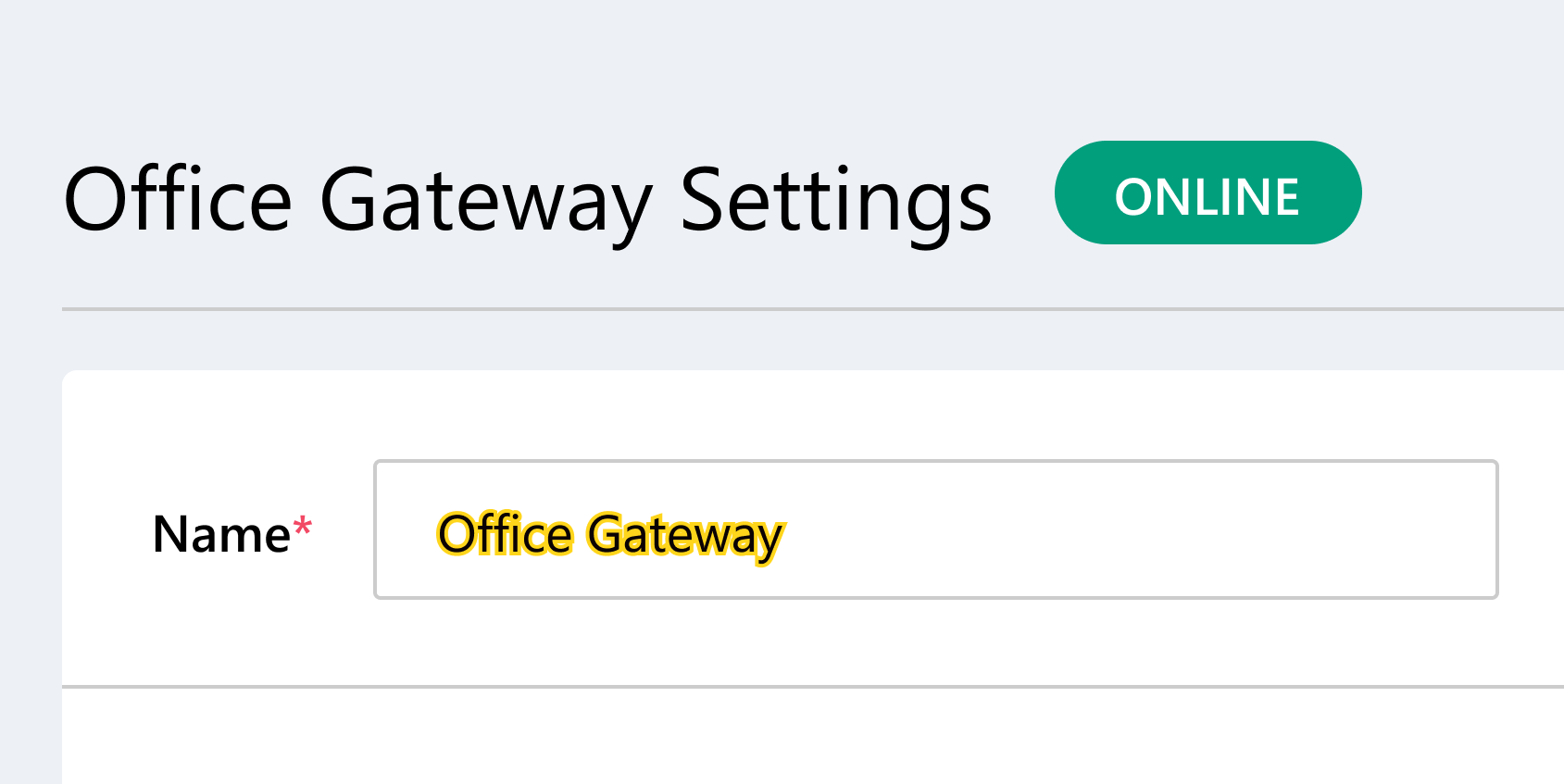

To edit the XV Gateway name, type in the box next to Name.

24 Edit XV Gateway Name.png

Edit the XV Gateway Name

Edit XV Gateway Time Zone

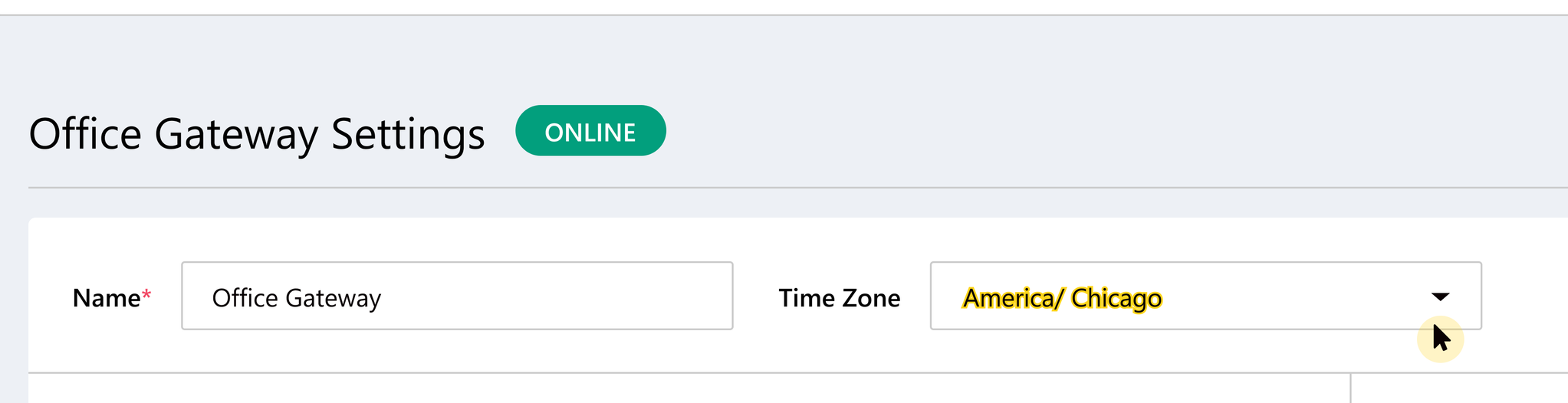

To edit the XV Gateway time zone, use the drop-down to select the proper time zone.

25 Edit XV Gateway Time Zone.png

Edit the XV Gateway Time Zone

Test XV Gateway Connection

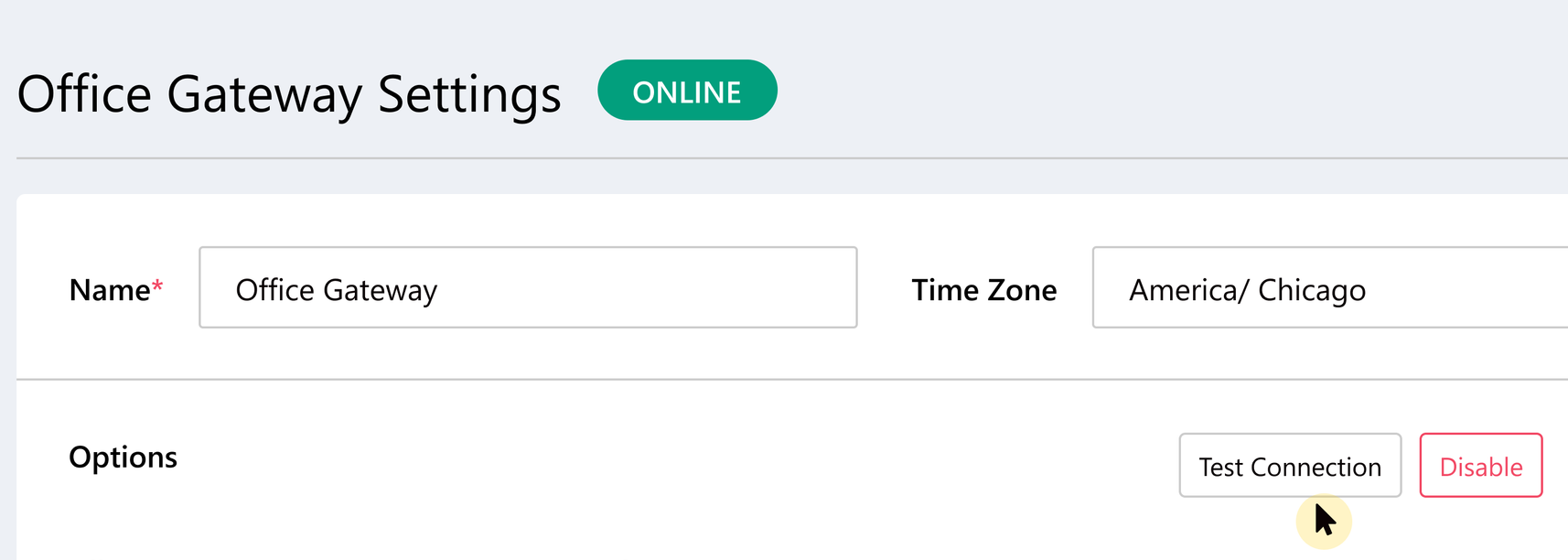

To test the connection of the XV Gateway to the panel, click Test Connection.

26 Test XV Gateway Connection.png

Test the XV Gateway Connection

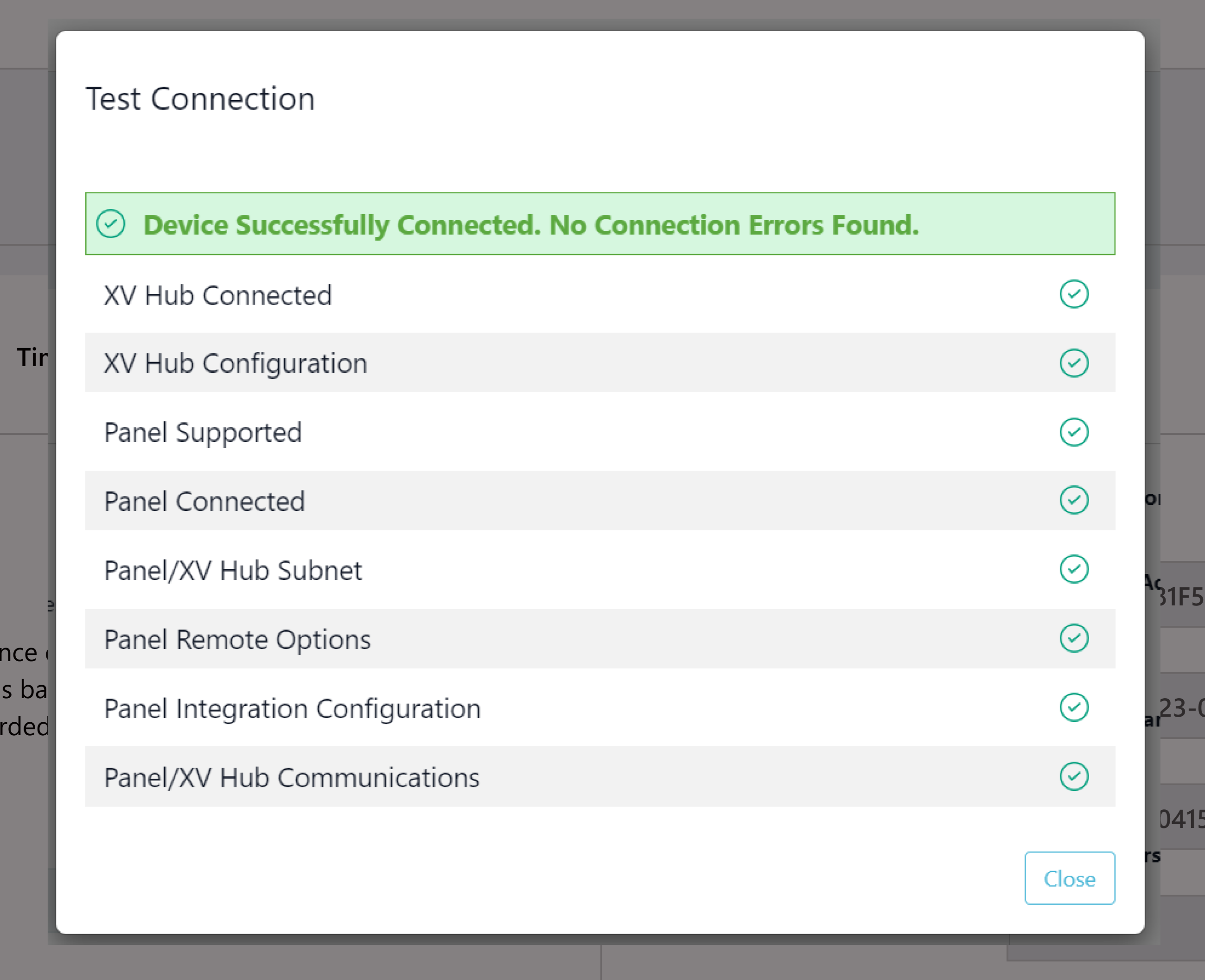

A checklist displays with everything tested to ensure proper communication between the XV Gateway and the panel. If an issue with the XV Gateway and panel connection is discovered, Dealer Admin attempts to fix the issue. If the issue is unable to be resolved, an error message displays with troubleshooting suggestions

27 Test Connect Info.png

Test Connection Information

Disable XV Gateway

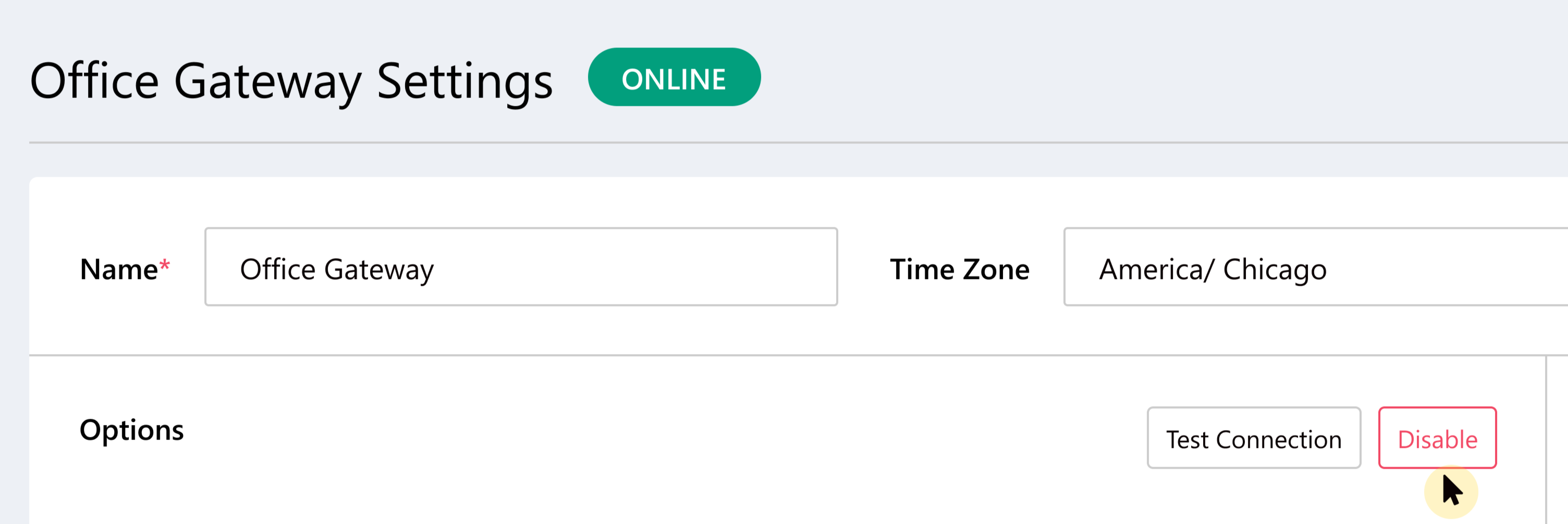

To disable the XV Gateway, click Disable.

28 Disable Gateway.png

Disable the XV Gateway

Restart XV Gateway

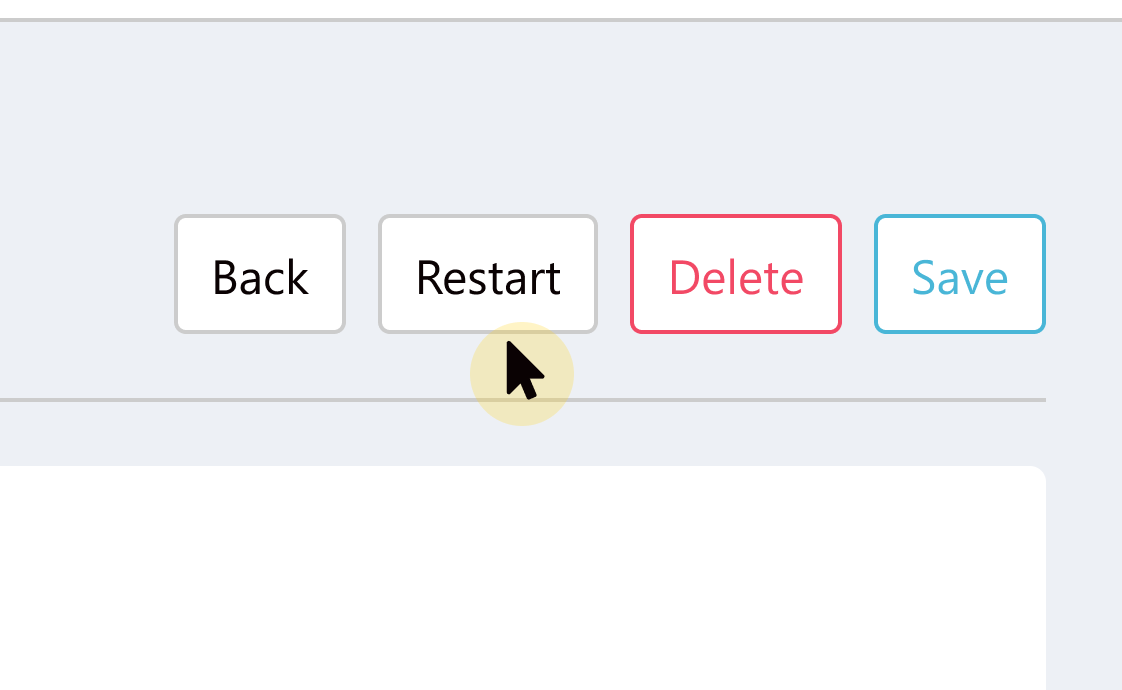

To restart the XV Gateway, click Restart.

29 Restart Gateway.png

Restart the XV Gateway

Delete XV Gateway

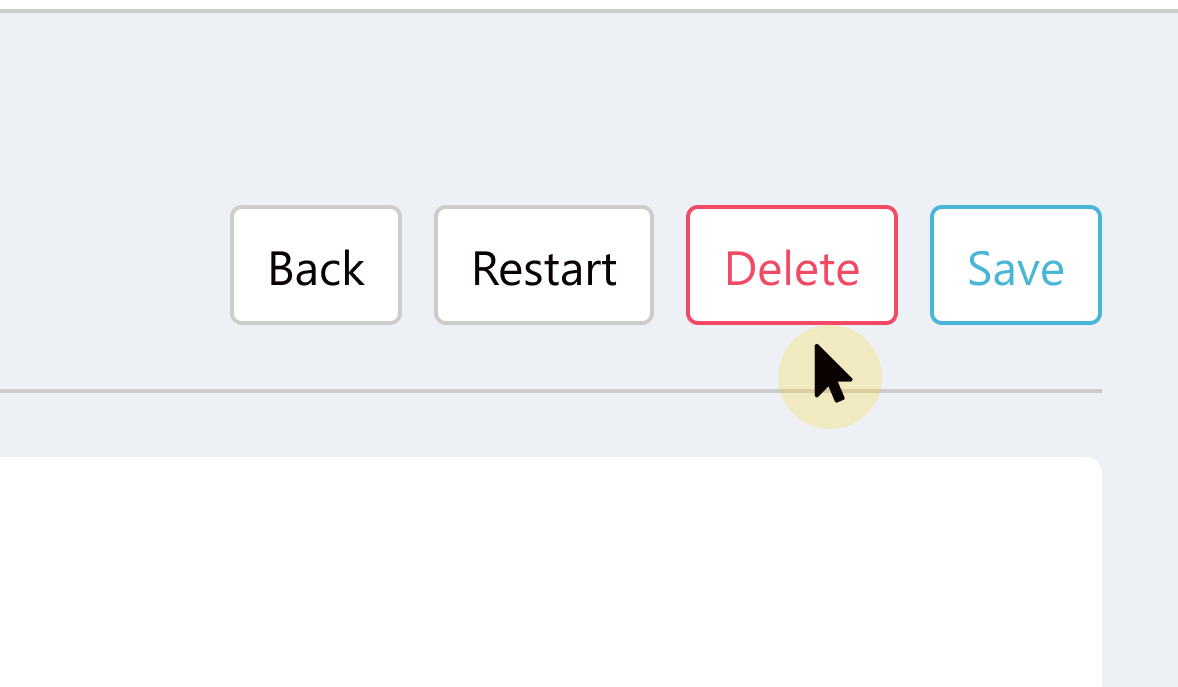

To delete the XV Gateway from the system, click Delete.

30 Delete Gateway.png

Delete the XV Gateway
