Use IMMIX Monitoring

Prior to enabling the IMMIX integration, ensure the inbound and outbound connections listed below are properly configured.

Inbound (Forwarded from the IMMIX IP Address to the XV Gateway)

HTTPS: TCP/443

  • Used by IMMIX to gather camera and alert information from the XV Gateway

RTSP: TCP/554 and UDP/554

  • Video streaming from XV Gateway to IMMIX

Source: Hostname provided by your IMMIX provider

Outbound

  • SMTP: TCP/25

    • Alerts from XV Gateway to IMMIX

    • If your ISP blocks port 25, try port 1025.

    • If port 1025 is also blocked, contact your ISP

  • Destination: Same address used in the SMTP Server field in Dealer Admin Final Setup

Enable IMMIX Monitoring with the XV Gateway

Note: Ensure all devices are added to the XV Gateway before adding it to your IMMIX account. Refer to Add Devices to the XV Gateway for more information.

  1. Log in to Dealer Admin (dealer.securecomwireless.com).

  2. Go to Customers, then select the System Name that the XV Gateway is connected to.

  3. At Video, select the name of the XV Gateway.

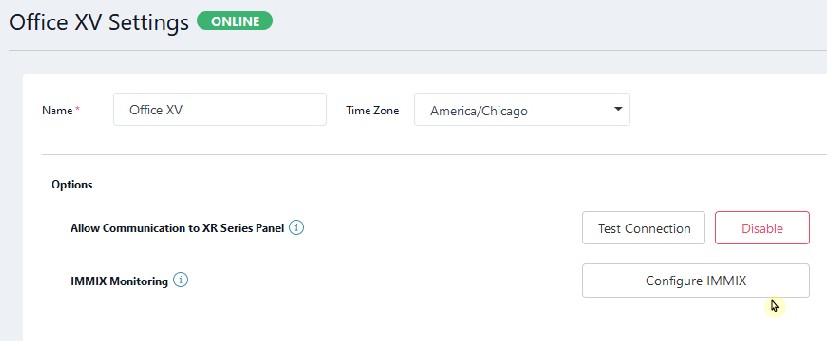

  4. In XV Gateway Settings, select Configure IMMIX.

Note: If Configure IMMIX Monitoring does not display, ensure the Monitoring Center Video Verification feature is enabled. Refer to Enable Monitoring Center Video Verification for more information.

configure IMMIX button DA.jpg

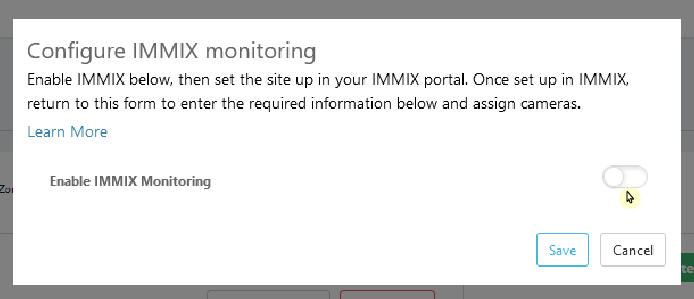

  1. Toggle Enable IMMIX Monitoring ON.

configure IMMIX integration.png

  1. Keep the IMMIX pop-up open on Dealer Admin and refer to the the steps below to setup the XV Gateway with IMMIX.

Setup the XV Gateway with IMMIX

  1. Log in to IMMIX (camect.immixcs.net/)

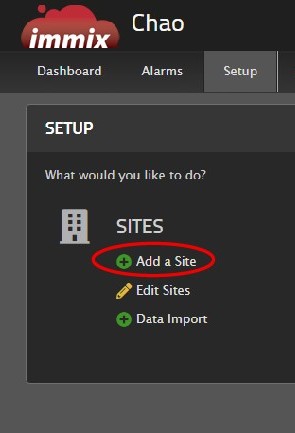

  2. At the top of the screen, select Setup, then select Add a Site.

immx screen 1 (2).jpg

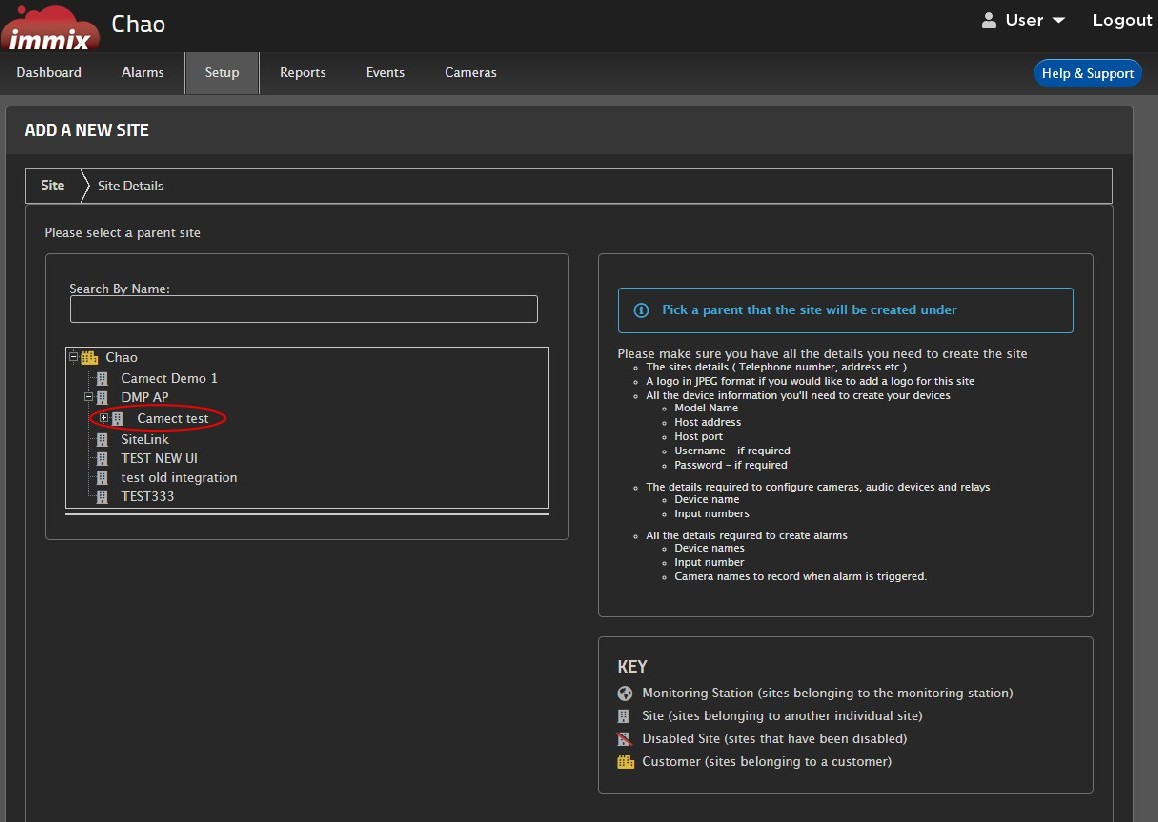

  1. In Site Details, select a parent site that the site is created under.

immx screen 2.jpg

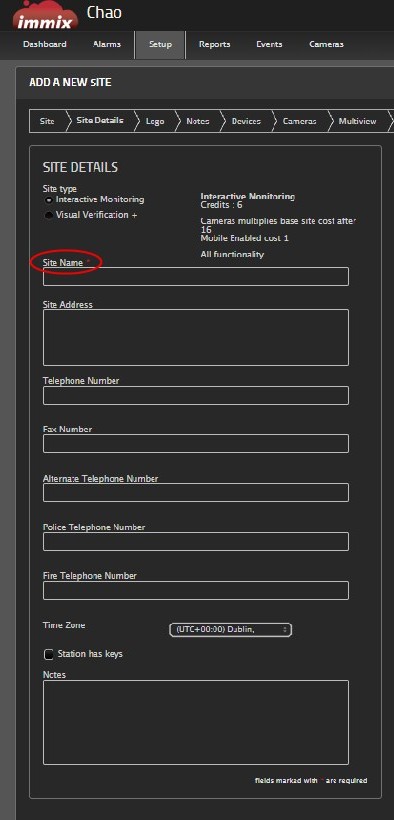

  1. At Site Details, add a Name for the site along with any additional information. Then, select Next.

immx screen 3.jpg
immx screen 3 (2).jpg

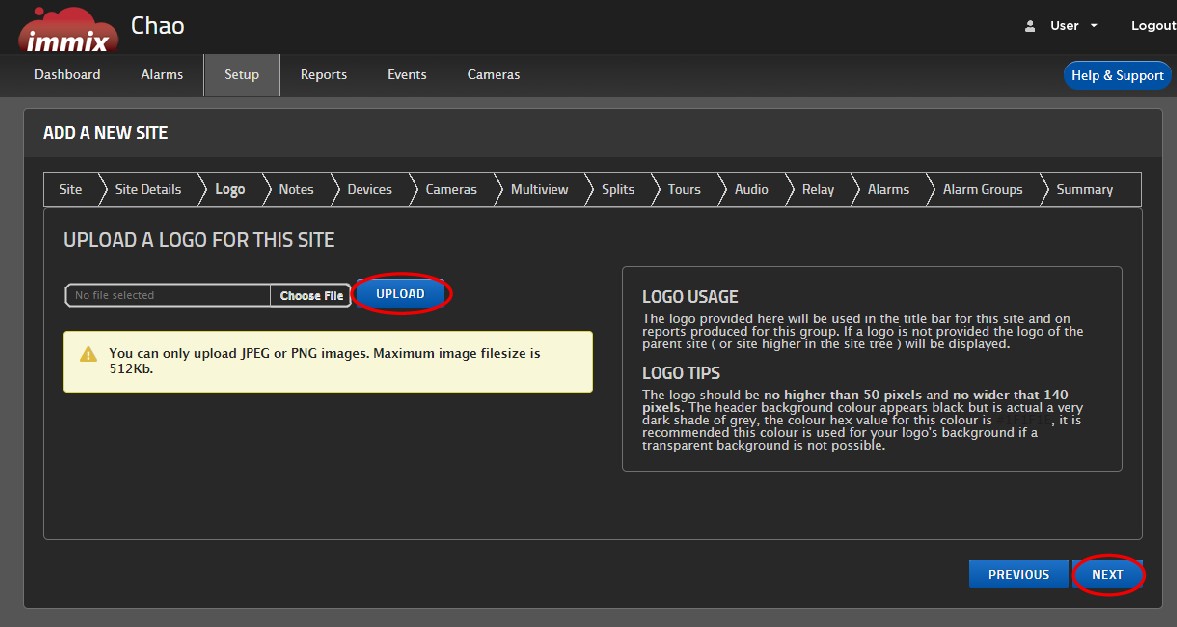

  1. (OPTIONAL) At Upload a Logo For This Site, select Upload to add a logo. If you do not want to upload a logo, select Next.

immx screen 4.jpg

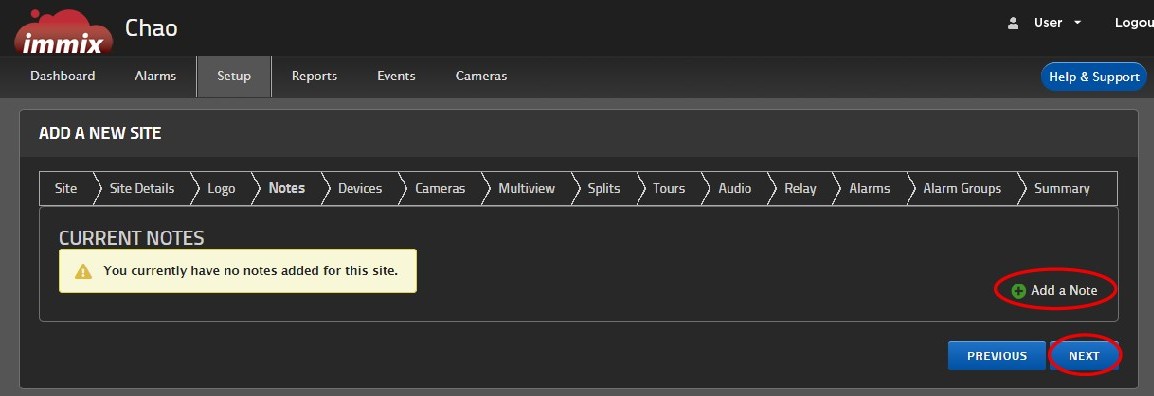

  1. (OPTIONAL) At Current Notes, select Add a Note to add notes to the site. If you do not want to add notes, select Next.

immx screen 5.jpg

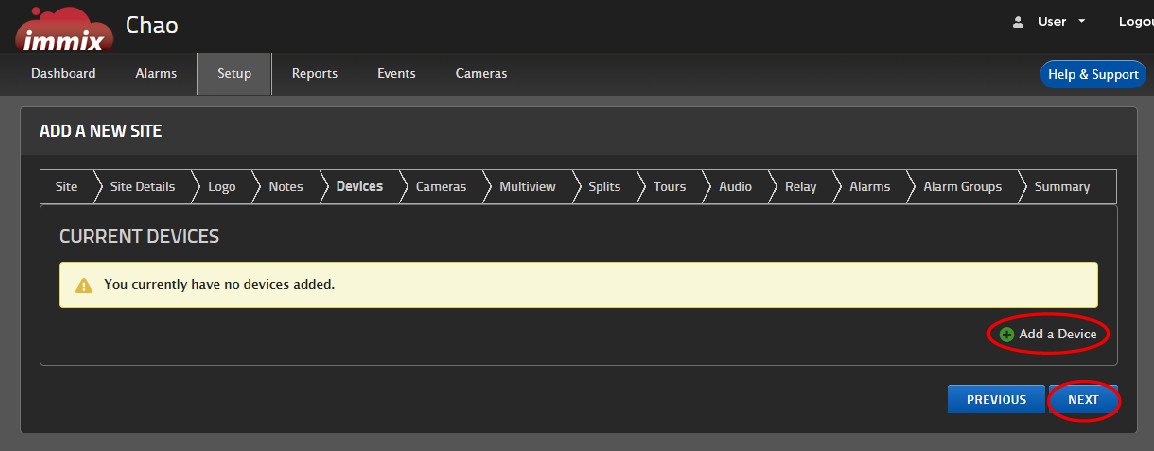

  1. At Current Devices, select Add a Device.

immx screen 6.jpg

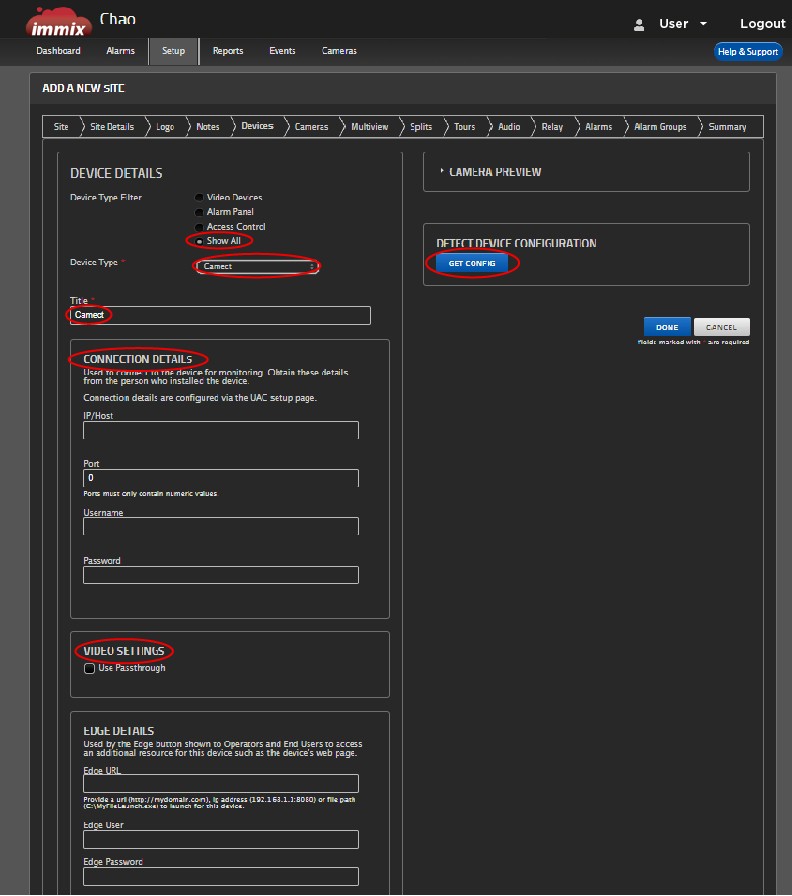

  1. At Device Details, enter the following information.

    • At Device Type Filter, select Show All.

    • At Device Type, use the drop-down menu to select Camect.

    • Give the device a Title.

    • At IP/Host, enter the WAN your gateway is connected to.

    • At Port, enter 443.

    • At Username, enter immix.

    • At Password, enter the MAC Address.

    • At Video Settings, select the Use Passthrough checkbox.

    • On the right side of the screen, select Get Config. This finds gateway and all of the devices connected to it. Once it has been connected, select Done.

immx screen 7.jpg

  1. Navigate to the Summary tab. This includes additional information needed to configure the integration in Dealer Admin.

  2. Keep the Summary tab open and navigate back to Dealer Admin.

Configure IMMIX Monitoring on Dealer Admin

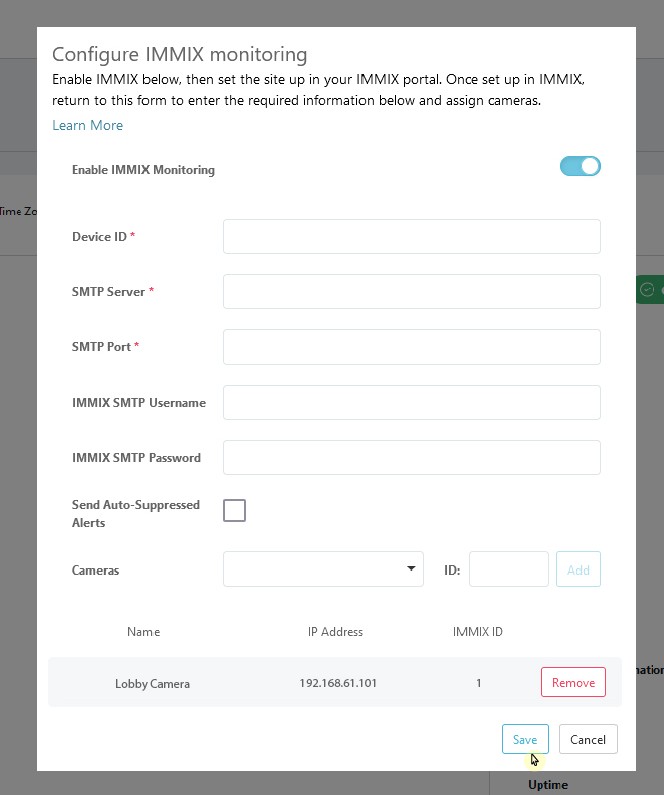

  1. Use the Summary tab in IMMIX to enter the following information in the Configure IMMIX Monitoring pop-up in Dealer Admin:

    • Device ID (Identifier in IMMIX)

    • SMTP Server (SMTP Server Address based on your IMMIX provider)

    • SMTP Port (set to 25)

  2. (OPTIONAL) At IMMIX SMTP Username and IMMIX SMTP Password, enter a username and password for the IMMIX integration.

  3. (OPTIONAL) Check the Send Auto-Suppressed Alerts checkbox.

  4. At Cameras, select the drop-down menu to select your camera. Then, add the ID that matches what appears in IMMIX for that camera.

  5. Select Save.

configure IMMIX monitoring 2.jpg

  1. Test the connection between the XV Gateway and the Monitoring Center by triggering alarms and ensuring live video and events are being sent.
